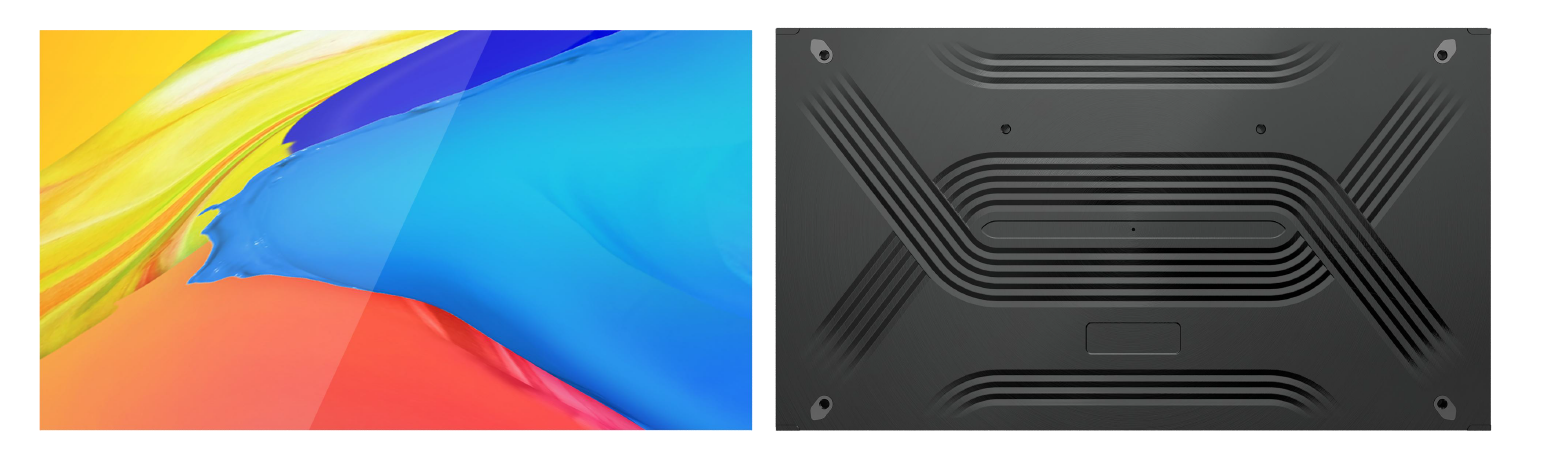

The Flip-Chip COB 1.25
C&CS stands for command and coontrol room solution best for monitoring purpose LED display by Epix is engineered for superior performance, precision, and durability. Designed for high-end indoor visual applications, this LED solution integrates cutting-edge flip-chip COB technology to deliver unmatched image clarity and efficiency.
Key Benefits of the Flip-Chip COB 1.25 LED Display
1. State-of-the-Art COB Integration
The chip-on-board structure provides enhanced LED protection and thermal management. This design minimizes failure points and increases long-term stability.
2. Reliable Inverted RGB Chip Technology
Engineered for precision and consistency, the inverted RGB layout delivers accurate colors and ensures long-term performance across various indoor lighting conditions.
3. High Contrast Ratio and Wide Viewing Angle
With an impressive 15,000:1 contrast ratio and a 165-degree viewing angle, your content remains vivid, clear, and distortion-free from virtually any direction.
4. Moiré-Free Illumination
A soft, uniform light source reduces glare and eliminates moiré effects, making this display perfect for environments with professional cameras or high visual sensitivity.
5. Energy-Efficient Performance
Equipped with PWM constant current drivers, the panel offers low power consumption while maintaining high refresh rates and visual brightness.
6. Flicker-Free 3840Hz Refresh Rate
Enjoy seamless, ultra-smooth video playback with a 3840Hz refresh rate, supporting real-time content delivery for media-rich environments.
7. Full Front Maintenance Access
The design allows for easy servicing from the front, which saves installation space and simplifies access in tight or built-in setups.
8. Seamless Display Assembly with Die-Cast Aluminum Cabinet
Manufactured using precision die-casting, the cabinet structure provides a clean, uniform surface with perfect module alignment.
9. Built for 2K, 4K, and 8K Configurations
Thanks to its native 16:9 aspect ratio, it scales easily for ultra-HD content delivery, supporting full-resolution configurations.
Technical Specifications at a Glance
Display Technology: Flip-Chip COB
Pixel Pitch: 1.25 mm
Resolution (Per Cabinet): 480 × 270
Pixel Density: 640,000 pixels/m²
Cabinet Size: 600 × 337.5 × 31 mm
Weight per Cabinet: 3.8 kg
Cabinet Material: Magnesium-Aluminum Alloy
Module Configuration: 4 × 2 layout
Brightness: 800 nits
Contrast Ratio: 15,000:1
Refresh Rate: 3840 Hz
Color Depth: 13-bit
Viewing Angle: 165° (horizontal & vertical)
Max Power per Cabinet: 69W
Average Power per Cabinet: 21W
Power Input: AC 100–220V, 60Hz
Max Power Consumption per m²: 339W
Average Power per m²: 110W
Operating Temp: -10°C to +40°C
Storage Temp: -10°C to +60°C
Humidity: 10%–80% (non-condensing)
Serviceability: Full front-access maintenance
