High-Resolution LED Video Wall | Curved LED screen Panel for Indoor rental cabinets

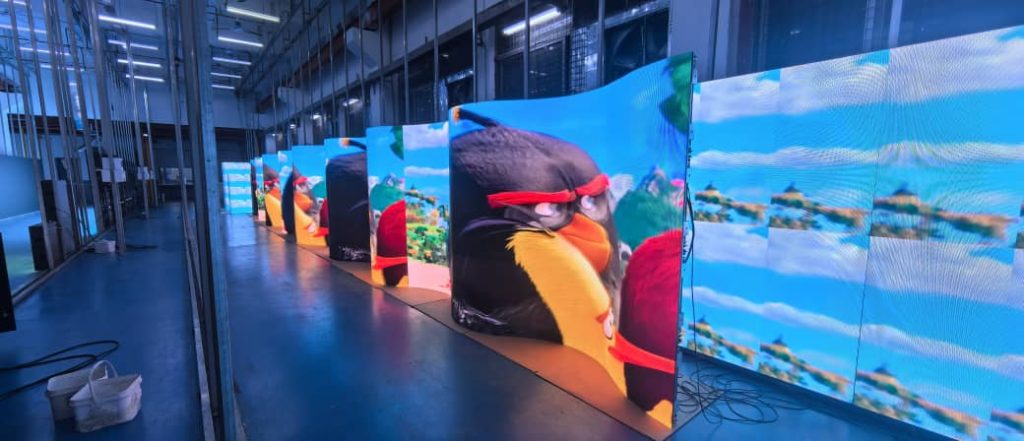

EPIX® eFlex 1.9 Indoor Curved LED Panel is a premium solution for high-resolution LED video walls that demand seamless curves and fine pixel pitch clarity. With 1.9mm pixel pitch, 500x500mm cabinet size, and flexible curve support, this LED screen module is perfect for indoor installations, immersive spaces, and command centers.
✔️ Ultra-fine pitch display
✔️ Flexible curved screen support (inner and outer)
✔️ Trusted LED screen supplier in UAE & GCC
Features of e-Flex 1.9
✅ Ultra-high resolution for short-viewing distances
✅ Seamless curve structure with angle-locking system
✅ Energy-efficient LED display with low heat emission
✅ Tool-less front serviceable design
✅ Modular panels for quick stacking or hanging
✅ Fan-less operation for noise-free indoor environments
| eFlex 1.9 Indoor Curved LED Panel – Technical Specifications | |
|---|---|
| Pixel Pitch | 1.9 mm |
| Cabinet Size | 500 × 500 mm (50 x 50 cm) |
| Module Size | 250 × 250 mm |
| Resolution per Cabinet | 264 × 264 pixels |
| Brightness | ≥800 nits |
| Refresh Rate | ≥3840 Hz |
| Contrast Ratio | 5000:1 |
| Grayscale | 14–16 bit |
| Viewing Angle | 160° Horizontal / 160° Vertical |
| Curve Capability | ±15° Inner and Outer Curves |
| Cabinet Weight | ≈7.5 kg |
| Material | Die-cast Aluminum |
| Maintenance Access | Front and Rear |
| Power Consumption | Max 180W / Avg 60W |
| Control System | NovaStar / Colorlight Compatible |
| Installation Method | Hanging or Stacking |
| Environment | Indoor Use Only |
